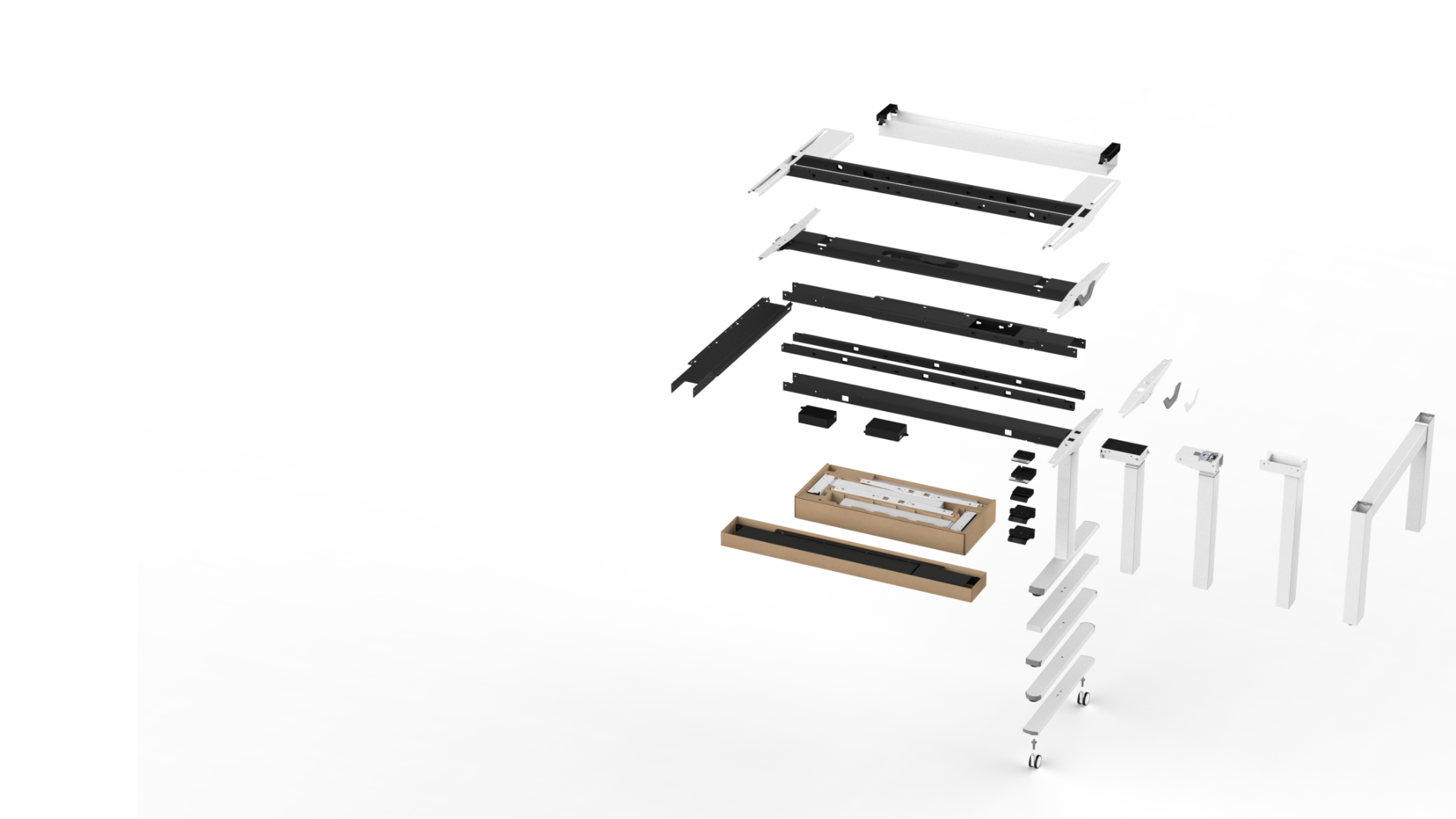

Our Tec modular construction kit offers you maximum modularity and flexibility.
Whether rectangular, square or round, the columns in the Tec Series are available with motorised, gas spring adjustment or fixed height. Most of the columns can be mounted using traditional screws or, if speed is of the essence, with a quick-release fastener. The motorised columns have an adjustment range (including 25 mm tabletop) of 650 mm to 1300 mm. The gas spring column has an adjustment range (including 25 mm tabletop) of 680 mm to 1180 mm.
The motor columns include the price-entry Evotec, the premium Sensotec, the heavy-duty Powertec and, coming soon, another heavy-duty column, Worktec, for even greater load-bearing capacity.
The guide panels for the columns are available in the following colours:
Classic fixed length, telescopic from 1200 mm to 1800 mm, foldable and available as a sliding plate, these beams leave nothing to be desired. Designed for maximum modularity, almost all beam types can be combined with all column types.
The telescopic beams are available in RAL9004 fine texture. The top supports of the folding beam and the sliding plate frame are individually powder-coated.
The top supports are 584 mm long and therefore suitable for tabletop depths of 600/700 mm to 800 mm. There is a screw-on version and a quick-release version, each of which can be used with the screw-on/quick-release column and screw-on/quick-release telescopic beam.
The optional V-cover is available in the following colours:
Optionally, an insert plate in the desired colour can be clamped into the cover. This can be configured with a laser-engraved logo on request.
With 5 different leg base shapes, all equipped with adjusting screws, you will always find the right one for the column cross-section. Optionally, each leg base can also be equipped with castors (braked and unbraked).
The plugs for the leg bases are available in the following colours:
The castor wheels are available in the following colours:
The control panels of the Tec Series are available in the following versions:
Control panel up/down
Control panel up/down with display
Control panel up/down with display and memory
Optionally, each control panel can be provided with an individual logo.
The Tec Series control boxes automatically detect which type of column is plugged in (type detection):
The motor columns can be used with a power supply unit and power cable or with a battery pack:
The docking station can be used with any battery pack that has 18V and is represented in the CAS (Cordless Alliance System).
Optional accessories include a cable tray for attachment to the tabletop, an H-sidebase for a duo configuration and an extension crossbar for a 90° corner table.
Whether individually or collectively packaged, we offer you the perfect logistics concept.
